| 产品特性：美商宝西 | 品牌：Positronic美商宝西 | 型号：GFSH89M1H/AA GFSH89M47H/AA |
| 种类：板对板 | 应用范围：PCB | 工作频率：低频 |
| 接口类型：BNC | 形状：矩形 | 线长：GFSH89M1H/AA GFSH89M47H/AAmm |
| 制作工艺：冷压 | 加工定制：是 | 特性：防潮 |
| 接触件材质：GFSH89M1H/AA GFSH89M47H/AA | 绝缘体材质：GFSH89M1H/AA GFSH89M47H/AA | 芯数：GFSH89M1H/AA GFSH89M47H/AA |
| 针数：GFSH89M1H/AA GFSH89M47H/AA | 订货号：GFSH89M1H/AA GFSH89M47H/AA | 物料编号：GFSH89M1H/AA GFSH89M47H/AA |
| 最小包装数：GFSH89M1H/AA GFSH89M47H/AA | 是否跨境货源：否 | 货号：GFSH89M1H/AA GFSH89M47H/AA |
| 应用领域：测量仪器 |

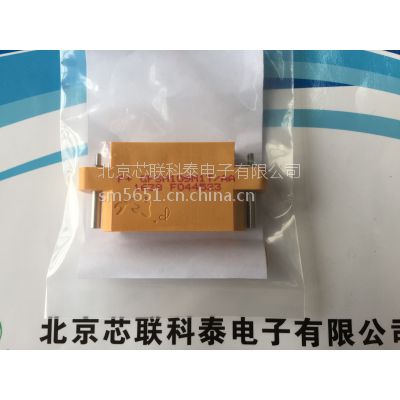

GFSH89M1H/AA GFSH89M47H/AA
键位:由绝缘体提供
可卸出接触件: 从绝缘体后部安装,取出则用取针工具从绝缘体前部插入,插孔的特点为闭口式,1000次插拔设计
固定接触件: 12号和16号接触件采用闭口式设计,1000次插拔(包括直式或直角(90°)线路板安装型)
22号机械加工接触件和冲压成型接触件采用开口式设计,250插拔(包括直式或直角(90°)线路板安装型)
接触件在绝缘体力的保持力: 动力接触件 45牛 (10磅)最小值
信号接触件27牛 (6磅)最小值
持续插拔: 适用于2和3级系统,请向工厂定制
环境特性
General
| Part Number Prefix | GFSH |
| Performance Level | Industrial |
| Qualifications | UL #49351 |
Materials | |
|---|---|
| Insulator Material | Nylon |
| Insulator Color | Gold |
| Flammability Rating | UL 94V-0 |
| Contact Material | Copper Alloy |
| Shell Material | N/A |
Electrical | |
|---|---|
| Insulator Resistance (GΩ) | 5.0 |
| Proof Voltage (V rms) | 1000 to 1500 |
| Working Voltage (V rms) | 500 |
| Initial Contact Resistance (mΩ, max) | 1.6 |
| Contact Current Rating (A) | 20 |
Environmental | |
|---|---|
| Temperature Range (?C) | -55 to 105 |
Mechanical | |
|---|---|
| Shape | Rectangular |
| Body Style | Free cable Panel mount |
| Insulator Construction | One-piece |
| Polarization Method | Insulator keyway |
| Locking System | Optional |
| Blind Mating | 1 |
| Contact Style | Fixed Removable |
| Contact Size | #22 #20 #16 #12 |
| Female Contact Design | Open entry Closed entry |
| Contact Retention Mechanism | Metal clip Press-in |
| Contact Retention (N) | 27 to 45 |
| Contact Termination | Wire PCB |
| Mating Cycles | 500 |
