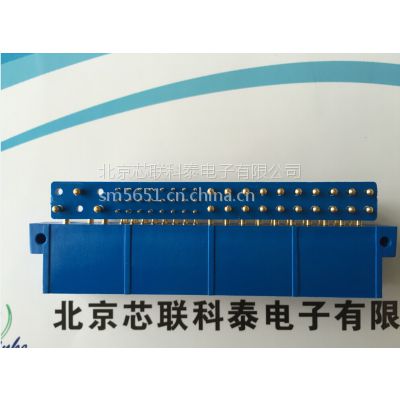

***系列混合型盲插式连接器 SGMC14F0E100J0/AA

***系列

品质***的混合型盲插式连接器，外壳坚固耐用

Overview

The Infinity power connector family was developed to supply the electronics industry a high power interface. The exceptional features of this series provide solutions for system design challenges created by increasing power consumption. With three package sizes (IP, MIP, MMIP) and over 19 standard contact variants, the versatile Infinity family offers a variety of power connector solutions.

Features

• Single package mixed density. Size 20, 16, 12 and 8 contacts

• Contact current ratings to 60 amperes per contact

• Options for AC input, DC output, and signal in a single connector

• “Touch safe” recessed female contacts

• 3 package sizes, 19 contact variants

• Hot-plug capability

• Large Surface Area (LSA) contact system. Low contact resistance saves energy

• Standard and high conductivity contact materials available for best cost/performance ratio

• Sequential mating options

• Excellent blind mating, 7.62mm misalignment

• Panel mount, float mount and jackscrew coupling options

• Solder PCB mount, crimp and press-fit terminations. Coplanar mounting options

• Wide variety of accessories/options

• Automatic crimping equipment
